Mass Storage Device Updates (MSD)

The Mass Storage Device (MSD) boot mode is a means by which application binaries can be flashed to the board via a drag-and-drop interface like one would use with a USB flash drive or similar device. MSD mode can be useful for deploying quick updates to marketers and engineers in the field without access to debugging tools like a Segger J-Link.

Enabling MSD Mode

To enable MSD mode on the SLN-VIZN3D-IOT, simply press and hold the SW1 button while powering on the board. If done correctly, the board's onboard LED will change to purple and begin blinking at an interval of roughly 1 second.

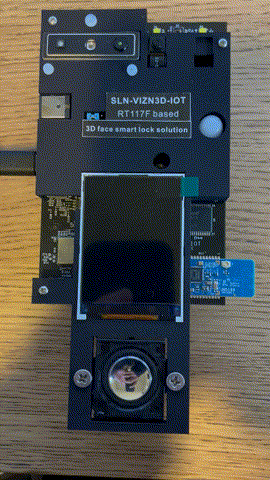

Mass Storage Device Enabled

Additionally, if connected to a Windows PC, your computer should make a sound indicating a new USB device has been connected and a new USB Storage Device will be shown in the file explorer.

Flashing a New Binary

To flash a new binary while Mass Storage device mode is enabled, you must first verify the application bank which is currently in use. This information can be discovered by using the version shell command while the main app is running.

version
App running in Bank A
Version 1.0.4
Shell>>

Once the current application bank in use has been identified, you must compile a binary for the alternate flash bank. For example, if Bank A is currently in use, you must compile a Bank B binary and vice versa. Instructions on compiling for a specific flash bank can this can be found in the Application Banks section.

info

The requirement to provide a binary for the alternate flash bank is designed to prevent corrupting the active flash bank and accidentally create an unrecoverable state which would require erasing and reflashing everything.

After compiling a binary for the proper flash bank, activate MSD mode by following the instructions above.

To begin flashing the binary, simply drag and drop the binary onto the device listing for the USB Storage device associated with your board. While flashing is in progress, a pop-up window will indicate the current progress of the firmware download.

Upon completion, the board will automatically reboot itself into the new firmware which was just flashed. This can be verified by opening the serial CLI and typing the version command again and checking that the application is running from the alternate flash bank.
